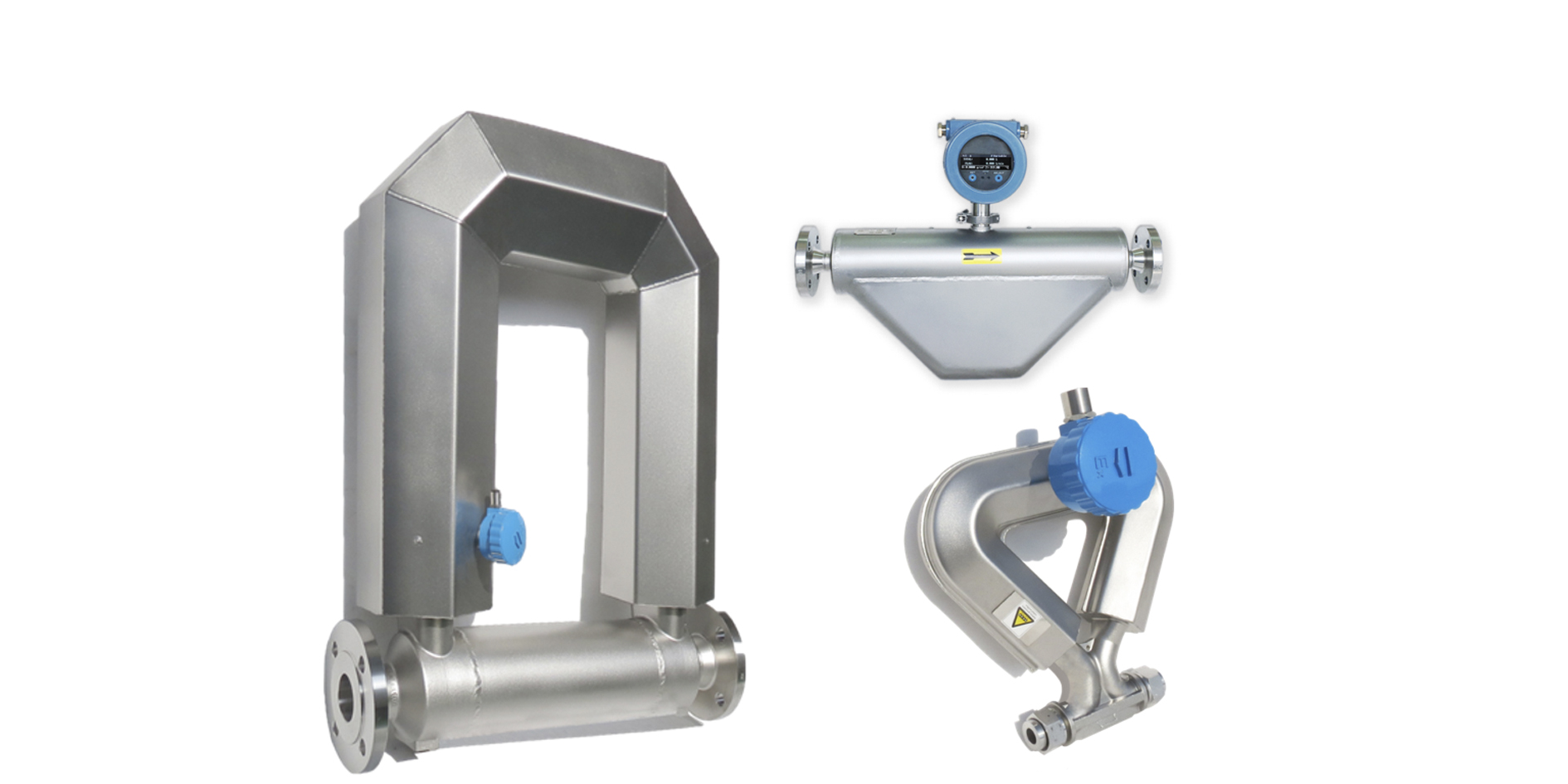

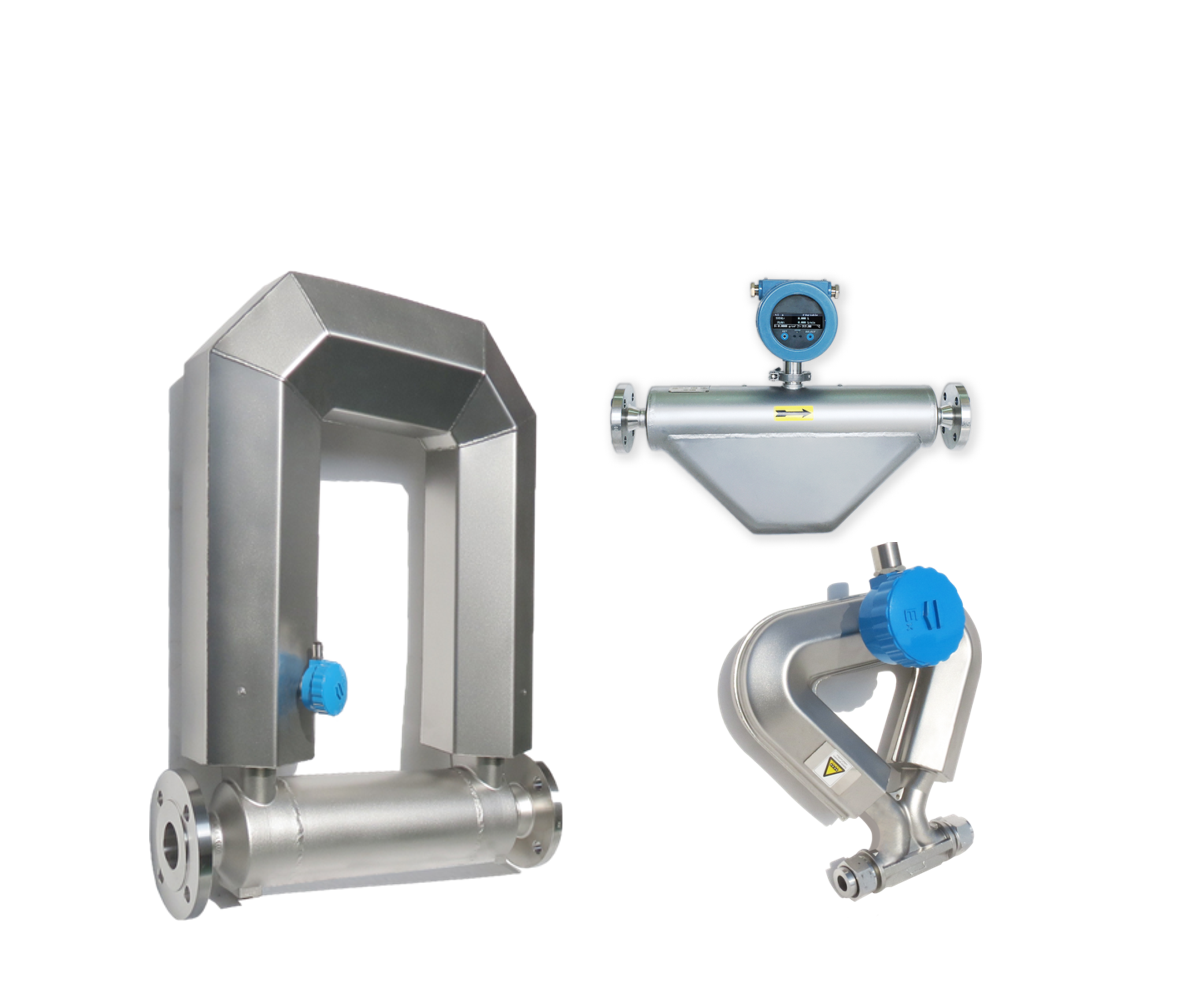

F 1001 Coriolis Mass Flowmeters

GENERAL
CORIOLIS MASS FLOWMETERS SIRIES MICRO-BENT

F1001-coriolis mass micro-bent series flowmeter is a user-friendly general-purpose coriolis mass flowmeter that measures the mass flow directly, Backed by F1001 micro-bent double sensing tube technology combined with the latest DSP electronic know-how, it offers a high price/performance ratio and accurate mass flowmetering for a broad range of industrial and laboratory application.


SPECIFICATION-Flow body

F1001-Micro Bent Series
Size from DN15 to DN150
Flow range: 0.2 ton/hr to 500ton/hr
Accuracy: ±0.1% of RD
Repeatability: ±0.05%
Process Connection: flanges (ANSI and DIN)
Digital outputs RS 485, Modbus, Hart
Operating pressure: max. 32 MPa
Prequency Output:
Output Range: 0?10 kHz
Temp. Impact: ±0.001%F.S/?
Resolving Power: 0.152Hz
Basic Error: ±0.075%
Max. capability of out range: 12kHz
Current Output:
Output range: 4-20mA,
Temp. Impact: ±0.005%F.S/?,
External resistor: 250?600Ω
Resolving Power: 0.000244mA

Basic error: 0.2%F.S
Process temperature: up to +300°C
Density Measurement:
Density range: (0.2~2.0) g/cm3
Basic Error: ±0.002g/cm3
Repeatability: 0.001g/cm3
Temp. measuring basic error: ?±1.0?
Body Material?Stainless Steel 304
Wetted Tube Material: SS as per DIN 1.4571 (AISI 316 Ti)
Power Supply 85-265 VAC, 18-36 VDC
Environment vibration:
Frequency Range: 10?2000 Hz
Acceleration amplitude value: 2g
Environmental Temperature: -20?+55 ?
Housing protection: IP 67
Working Humidity: ?90%@+25?
Approvals :Exd (ib)II CT4~T6;C
